AboutCleanCold Technologies
Our water-based cooling and refrigeration technology can eliminate up to 20% of all global greenhouse gas emissions.
The cooling power of vacuum-driven water evaporation serves as the basis of CleanCold Technologies’ *patented cooling and refrigeration process. It begins by atomizing water droplets into an aluminum cylinder housed in a chamber that undergoes vacuum-induced vaporization, driving the cylinder’s cooling. The cooled cylinder sits within the refrigeration system’s water-based cooling circuit that, like its global warming-inducing refrigerant counterparts, transfers cooling to any desired space such as a commercial refrigerator or cold room.
System Technology
CleanCold Technologies’ vacuum-driven water evaporation cooling technology is widely applicable to commercial cooling systems.
Our innovative technology uses a completely safe and natural refrigerant that has zero Global Warming Potential (GWP). In addition, it replaces current HFC / HC / CO2 / ammonia / HFO systems, thereby providing significant benefits for the cooling and refrigeration industries as well as our environment. Our cooling system replaces current commercial and industrial refrigeration system components by simply connecting to existing standard piping. With our system, technicians providing installation or maintenance services no longer have to deal with dangerous exposure risks of CO2 or ammonia systems.
System Transparent View

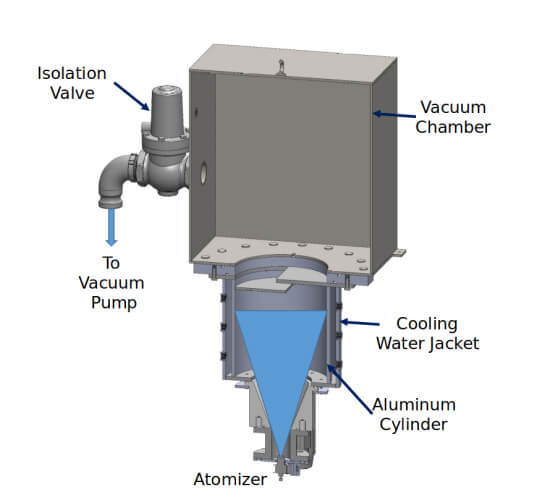

System Cutaway View

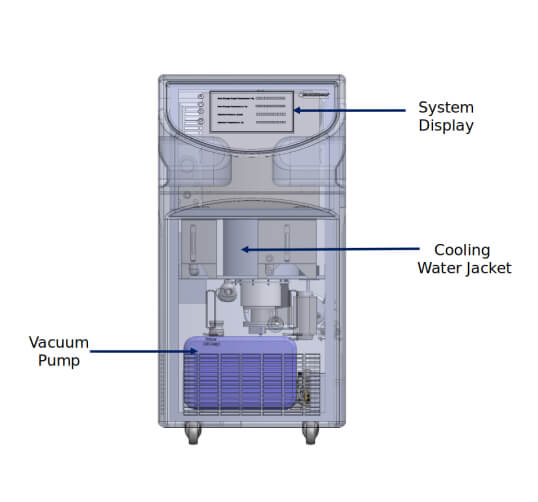

System Transparent View
Key Internal
System Components
System Operation
Atomizer Sprays Water Droplets Into Aluminum Cylinder
System Operation

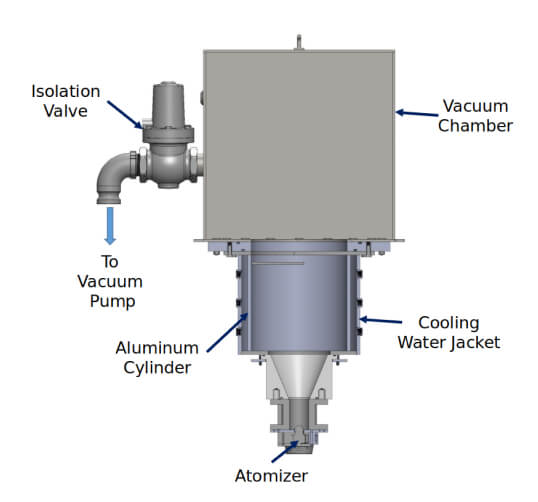

Isolation Valve Opens, Vacuum Pump Evacuates Chamber, Water Droplets Vaporize & Flow to Vacuum Pump, Remove Heat from Aluminum Cylinder
System Operation

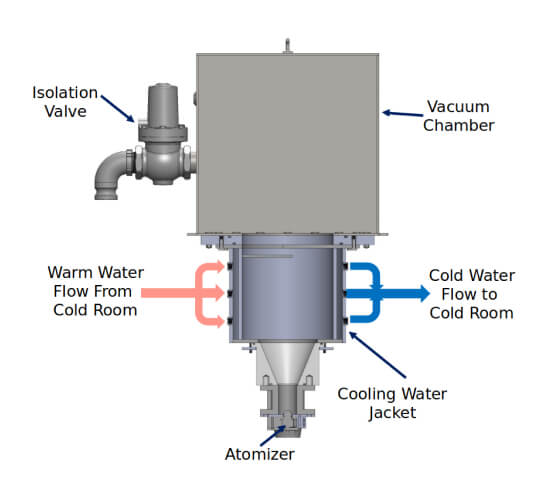

Cooling Water Flows around Aluminum Cylinder, Deposits Heat into Cylinder Cooling Water, Flows from Water Jacket to Cold Room, Returns to Water Jacket from Cold Room to Repeat the Cycle

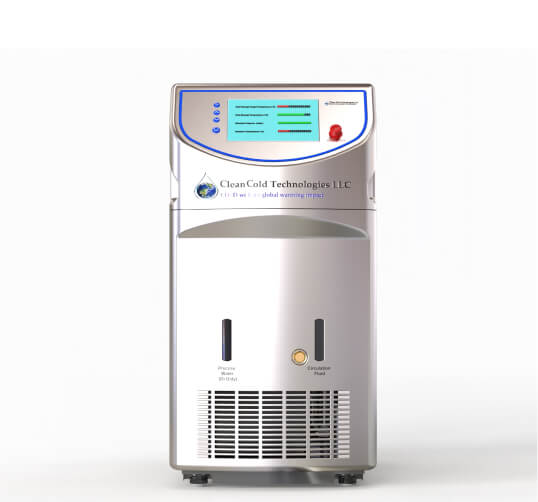

System External

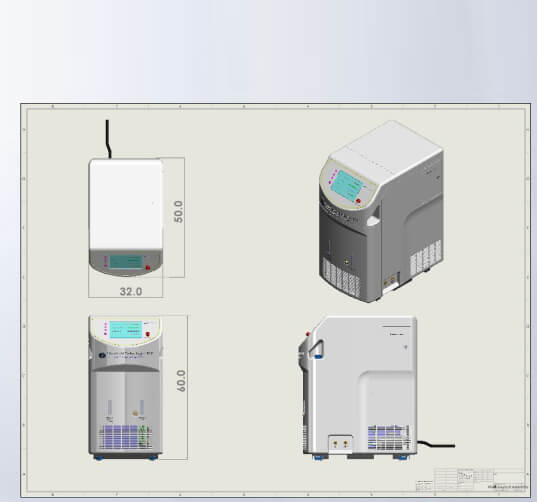

Enclosure Dimensions
Prev
Creating Cooling WithNo Impact on Global Warming
CleanCold Technologies’ innovative vacuum-driven water evaporation cooling and refrigeration process creates cold without using any global warming refrigerants.
Key Points
- CleanCold Technologies’ innovative cooling and refrigeration process utilizes vacuum drive evaporation of water and creates cold with no refrigerant-related global warming impact.
- Our natural water refrigerant process provides a completely safe and zero GWP system that has the potential to reduce greenhouse gas emissions by a cumulative 2,433 MMTs to 7,244 MMTs of CO2 over 25 years, post-introduction.
- While CleanCold Technologies will focus on commercial refrigeration initially, expansion into air conditioning, cold transport, and medical devices will provide additional opportunities for potential revenue generation.
